Logistics security seal mould is similar with cable tie moulds. If you order this mould from an unprofessional factory, 100% will get very bad quality mould. Taizhou Xiongshi Plastic Mould Co., Ltd have more than 10 years experience in making cable tie moulds and logistics security seal moulds.

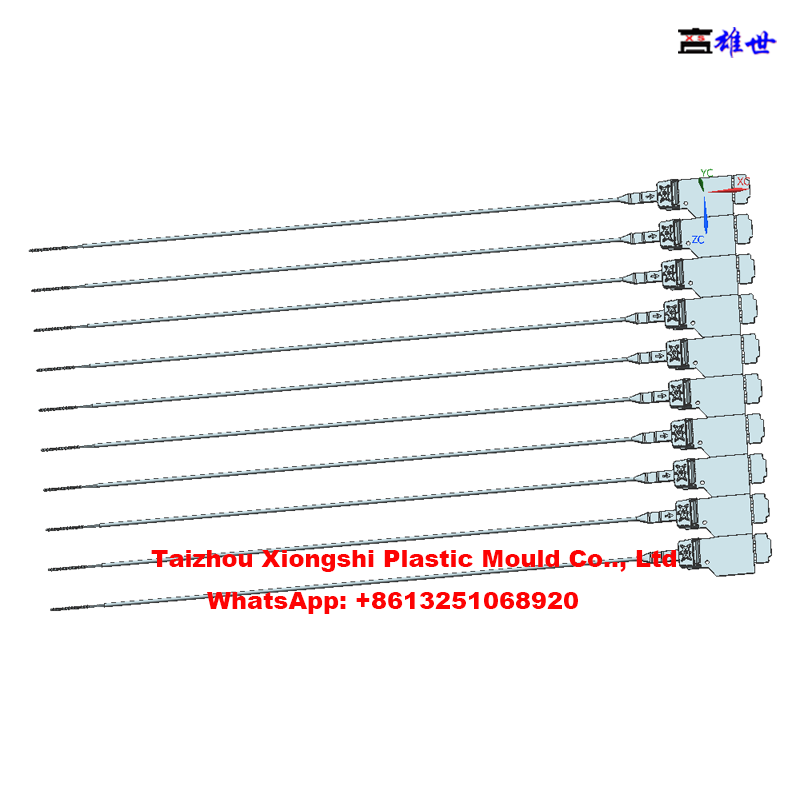

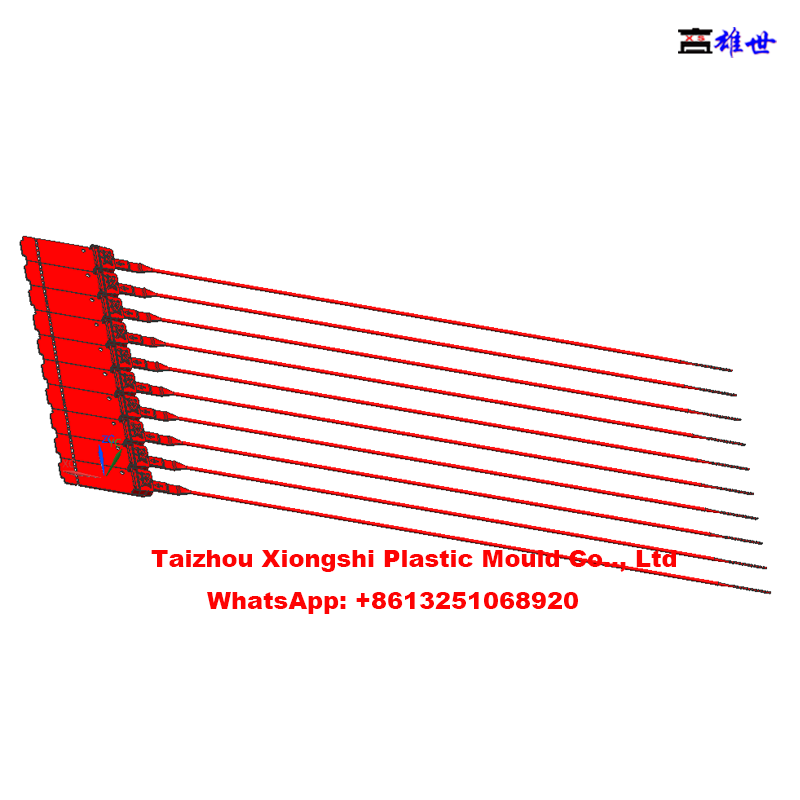

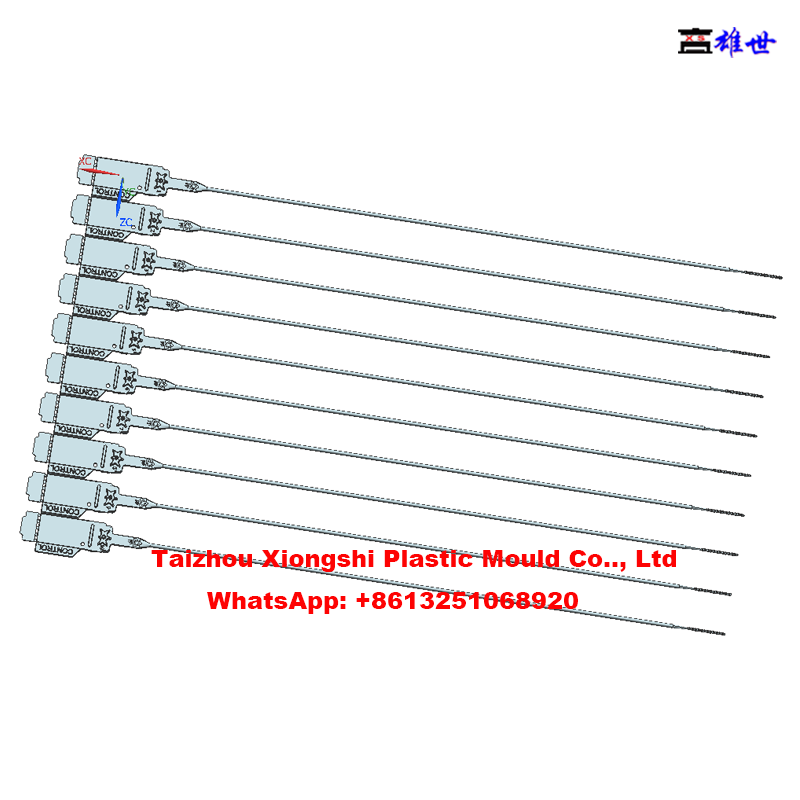

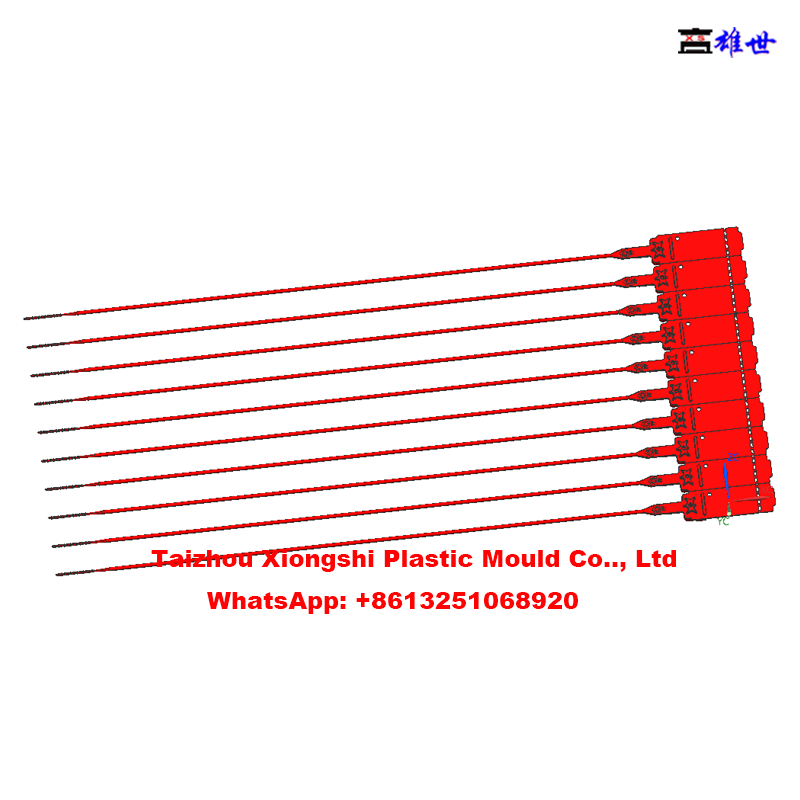

- Logistics security seal mould part design.
The best way is customer providing us original samples, we make the new design according the sample. As there may include design mistake in the 3D design when the part design provided by customer. Because as injection molding factory, they don’t know details about the draft angle, and structure which can be easily demoulded.

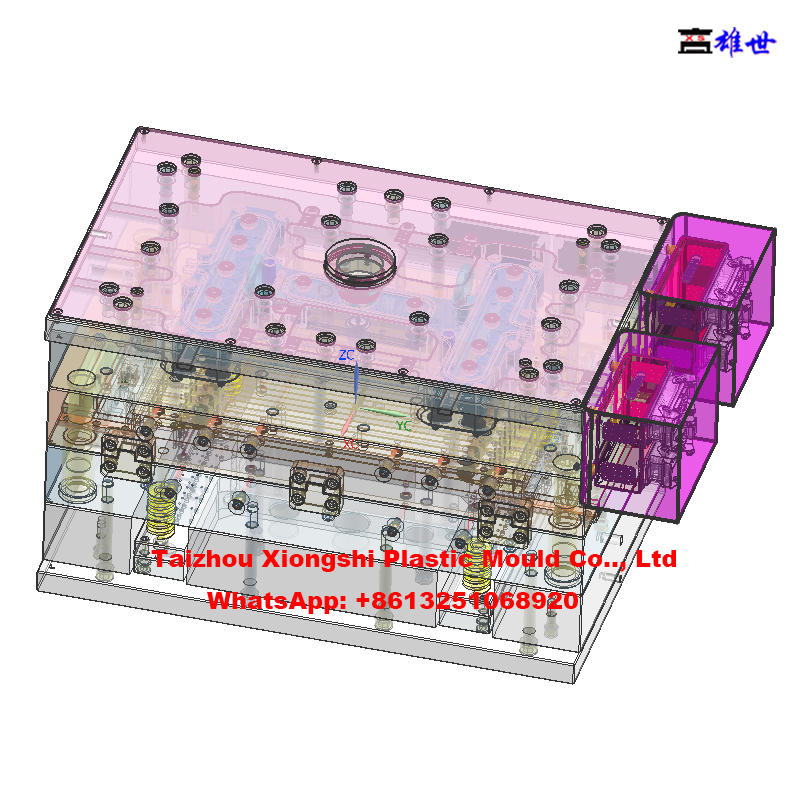

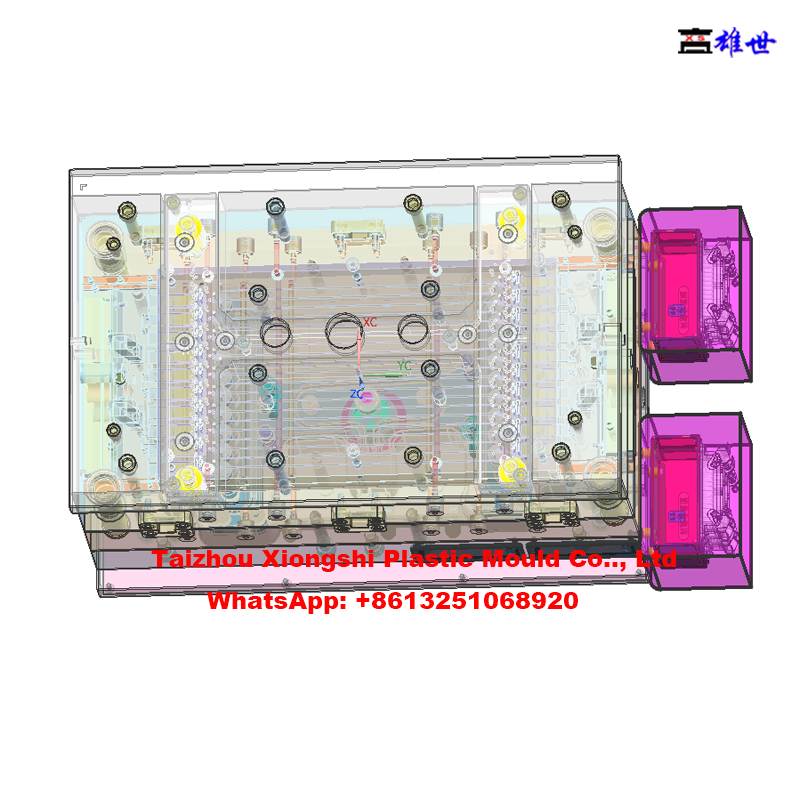

- Logistics security seal mould drawing.
For logistics security seal mould and cable tie moulds, normally we make only 2D mould drawing only. Because for these two kinds moulds, most tooling process is EDM and precision grinding machine tooling. However if customer need mould 3D design for the logistics security seal mould, we also can provide.
- Logistics security seal mould tooling process.
Steel plates cutting –> Hole drilling –> Rough CNC milling tooling for A/B plates –> Precision grinding tooling –> EDW tooling –> EDM tooling –> Deep hole drilling –> Assembling –> Polish –> Texture –> Mould trial. - Logistics security seal mould trail.

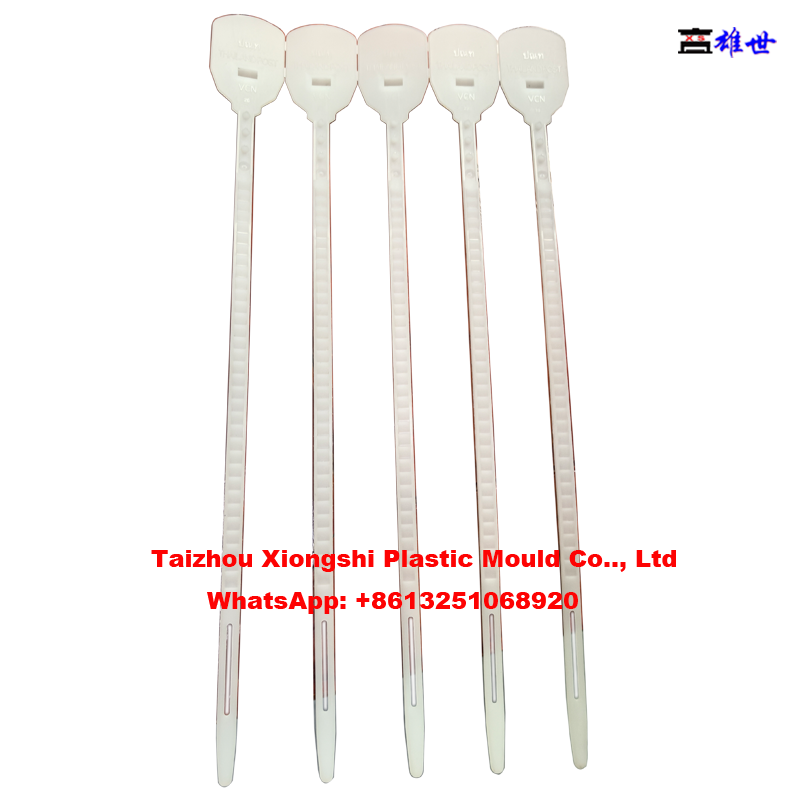

- Logistics security seal mould trail samples pictures.

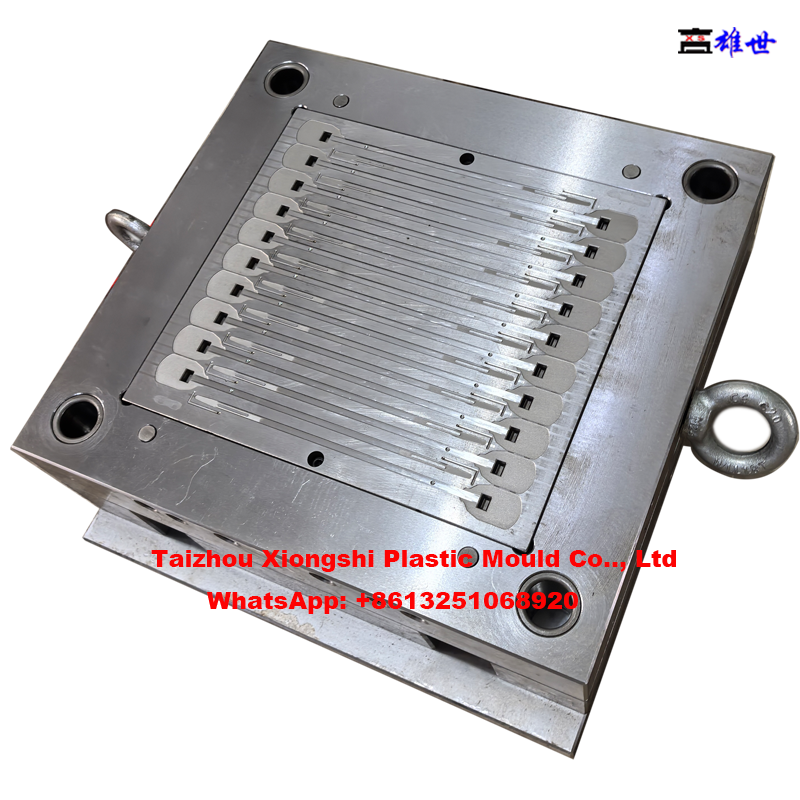

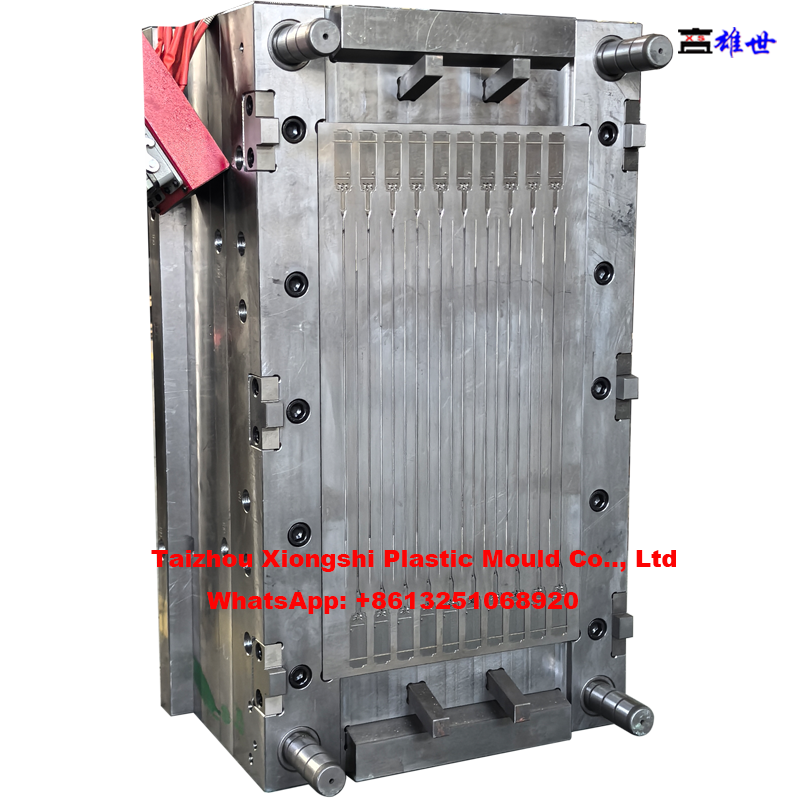

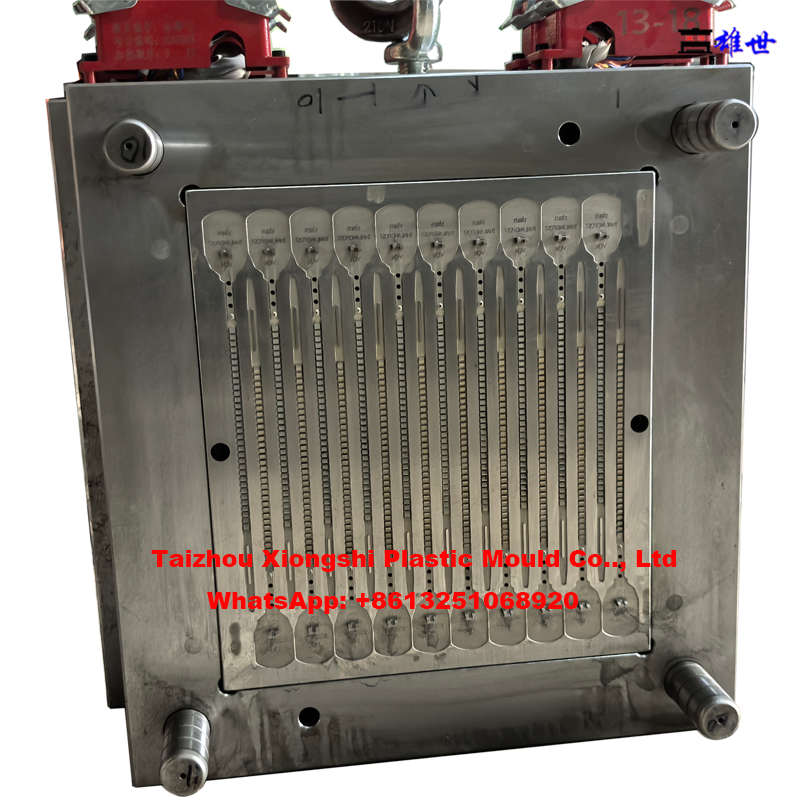

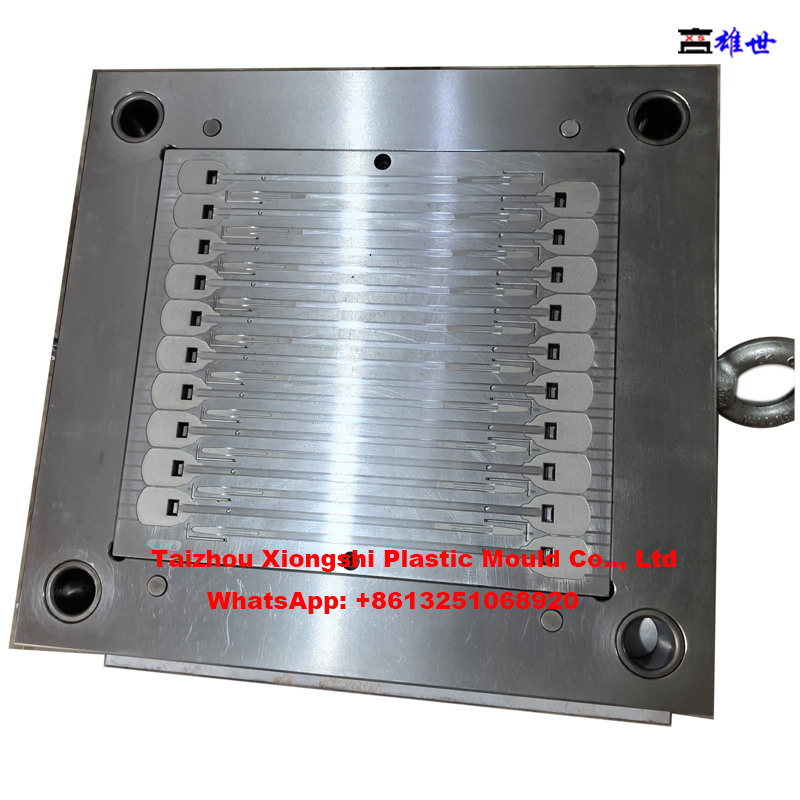

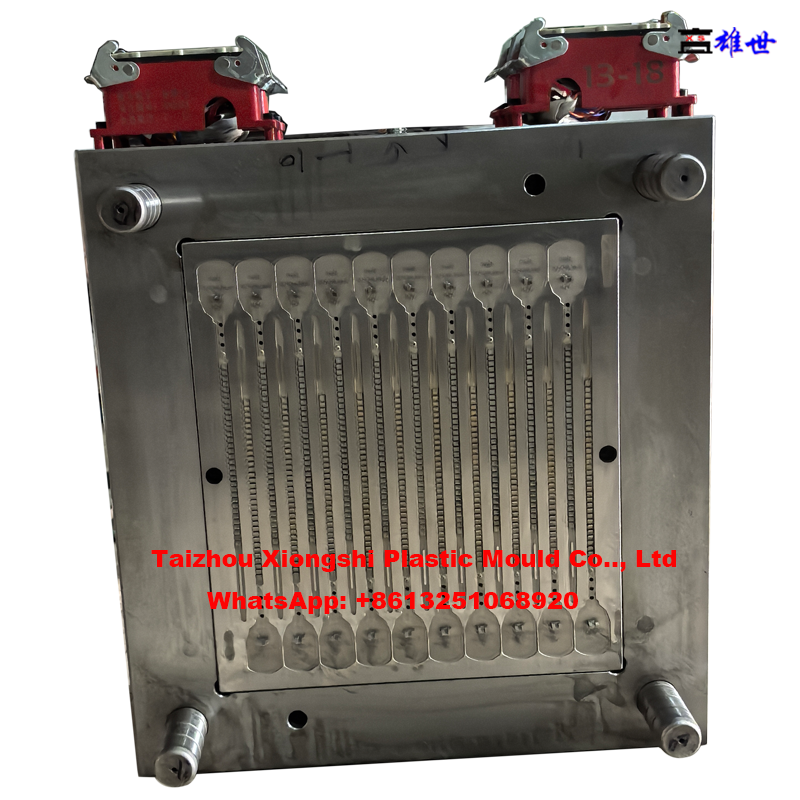

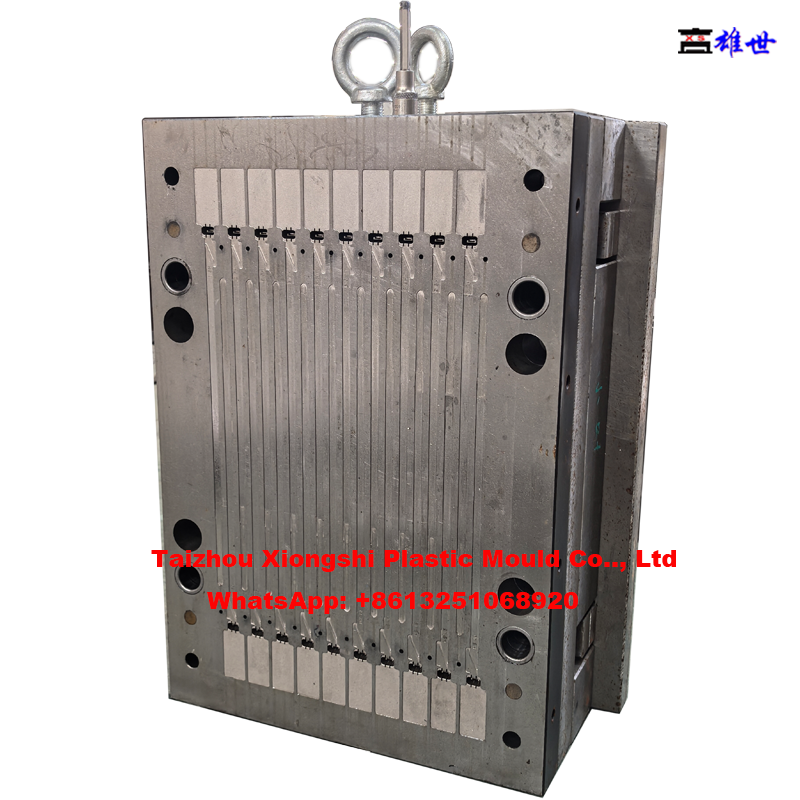

- Logistics security seal mould pictures.
